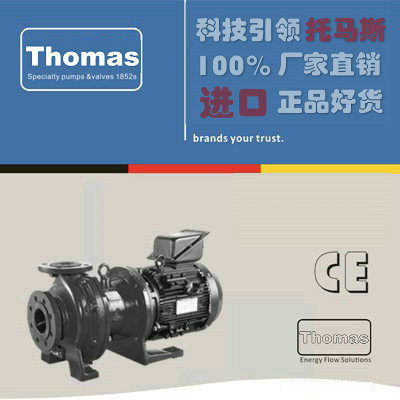

进口氟塑料离心泵原理特点及品牌（图）

进口氟塑料离心泵按国际标准设计，泵体采用金属外壳内衬聚全氟乙丙烯(F46)，泵盖、叶轮和轴套均用金属嵌件外包氟塑料整体烧结压制成型，轴封采用外装式波纹管机械密封，静环选用99%氧化铝陶瓷或氮化硅，动环采用四氟填充材料，耐腐耐磨，适用于输送任何浓度的硫酸、盐酸、醋酸、氢氟酸、硝酸、王水、强碱、强氧化剂、有机溶剂、还原剂等苛刻条件的强腐蚀性介质，是目前世界上最强耐腐蚀装备之一。

技术参数

流量：3.6～100m3/h；

扬程：15～55m；

转速：2900r/min；

功率：1.5～18.5KW；

进口直径：25～100mm；

适用温度：-20℃～120℃。

设计特点

德国托马斯(Thomas)进口氟塑料离心泵过流部件全部采用氟塑料合金制造，结构紧凑、操作简单、价格低廉，两种型号的泵壳、叶轮、机封等均可互换使用深受广大用户的欢迎。

产品特点和用途

该泵具有结构紧凑合理、耐强腐蚀、密封性能严密可靠、工作稳定、噪声低、机械强度高、不老化、无毒素分解、维修方便、流道光滑、效率高，节约能源等优点。杜绝跑、冒、滴、漏，广泛应用于化工、制酸、制碱、冶炼、稀土、农药、染料、医药、造纸、电镀、电解、酸洗、无线电、化成箔、科研机构、国防工业等行业。

Fluorine plastic centrifugal pump designed according to international standards, the pump body with metal shell lined poly perfluoro-propylene propylene (F46), pump cover, impeller and sleeve are covered with metal inserts Fumed plastic overall sintering compression molding, Corrugated pipe mechanical seal, static ring selection of 99% alumina ceramic or silicon nitride, dynamic ring with PTFE filler, corrosion-resistant wear, suitable for conveying any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, Water, strong alkali, strong oxidants, organic solvents, reducing agents and other harsh conditions of strong corrosive media, is the world's strongest one of the corrosion-resistant equipment.

Technical Parameters

Flow: 3.6 ~ 100m3 / h;

Head: 15 ~ 55m;

Speed: 2900r / min;

Power: 1.5 ~ 18.5KW;

Import diameter: 25 ~ 100mm;

Applicable temperature: -20 ℃ ~ 120 ℃.

Design Features

Germany Thomas imports of fluorine plastic centrifugal pump flow components are all made of fluorine plastic alloy, compact structure, simple operation, low prices, two models of the pump shell, impeller, machine seals, etc. are widely used User welcome.

Product features and uses
