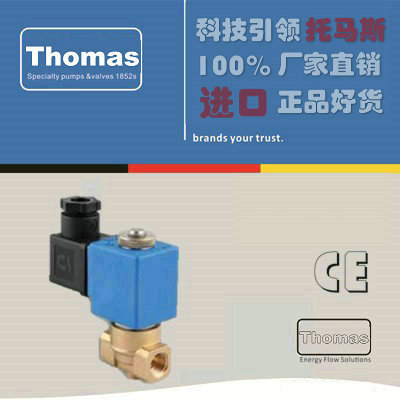

Application | : | Air, water, gas |
| Size | : | 1/8" … 1" BSP (on request NPT) |
| Pressure | : | 0,5 bar … 40 bar (1/8" , 1/4" …20bar… 200bar) |
| Tube and internal part | : | Stainless Steel |
| Body | : | Brass |
| Seal | : | PTFE+ VITON |
| Temperature | : | .-10°C…80 °C |
| Position | : | Normally Closed |
| Coil Voltage | : | 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC |
| Protection Class | : | IP65 ve Exproof models |
Valve Type / Order No | Connection Size | Orifice Size (mm) | Pressure (bar) | KV lt/ min | Fluid Temperature | Seal | Weight (kg) | ||
| Min | Max | Min | Max | ||||||
| S1013.00.010 | 1/8" | 1 | 0 | 100 | 0,6 | -10 | 160 | VITON | 0,36 |
| S1013.00.018 | 1/8" | 1,8 | 0 | 50 | 1,6 | -10 | 160 | VITON | 0,36 |
| S1013.00.025 | 1/8" | 2,5 | 0 | 20 | 3,2 | -10 | 160 | VITON | 0,36 |
| S1013.01.010 | 1/4" | 1 | 0 | 100 | 0,6 | -10 | 160 | VITON | 0,35 |
| S1013.01.018 | 1/4" | 1,8 | 0 | 50 | 1,6 | -10 | 160 | VITON | 0,35 |
| S1013.01.025 | 1/4" | 2,5 | 0 | 20 | 3,2 | -10 | 160 | VITON | 0,35 |
| S1013.02 | 3/8" | 12,5 | 0,5 | 40 | 48 | -10 | 160 | PTFE+VITON | 0,69 |
| S1013.03 | 1/2" | 14,5 | 0,5 | 40 | 70 | -10 | 160 | PTFE+VITON | 0,73 |
| S1013.04 | 3/4" | 17 | 0,5 | 40 | 85 | -10 | 160 | PTFE+VITON | 0,81 |
| S1013.05 | 1" | 17 | 0,5 | 40 | 90 | -10 | 160 | PTFE+VITON | 0,98 |
Valve Type / Order No | Connection Size | Orifice Size (mm) | Pressure (bar) | KV lt/ min | Fluid Temperature | Seal | Weight (kg) | ||
| Min | Max | Min | Max | ||||||
| S1014.02 | 3/8" | 12,5 | 0,5 | 40 | 48 | -10 | 160 | PTFE+VITON | 0,71 |
| S1014.03 | 1/2" | 14,5 | 0,5 | 40 | 70 | -10 | 160 | PTFE+VITON | 0,74 |
| S1014.04 | 3/4" | 17 | 0,5 | 40 | 85 | -10 | 160 | PTFE+VITON | 0,82 |
| S1014.05 | 1" | 17 | 0,5 | 40 | 90 | -10 | 160 | PTFE+VITON | 0,99 |
| Dimensions (mm) | |||||||
| G | A | B | C | D | E | F | H |
| 1/8" | 40 | 90 | 32 | 39 | 78 | 22.3 | 25.6 |
| 1/4" | 40 | 90 | 32 | 39 | 78 | 22.3 | 25.6 |
