进口圆盘式疏水阀原理特点及品牌（图）

作者：托马斯·贝尔森·伍德发布时间：2021-01-14 15:09:15点击：

进口圆盘式疏水阀原理特点

进口圆盘式疏水阀是根据伯努力热动力原理，利用蒸汽和凝结水的热动力学不同的特性，引起动能和势能动静压变化。使动作件阀片上下压差变化，启动阀片开启和关闭，从而达到阻汽排水目的。

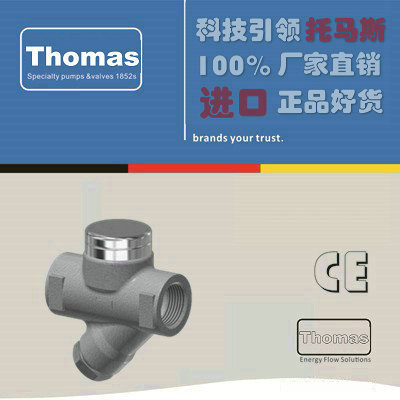

Thermodynamic DT46 disc steam traps are compact and lightweight-easy to install traps, excellent for high pressure systems, including steam tracing applications.

The insulation cover insures a consistent operation and makes it particularly suitable for those applications where the weather conditions, such as rain and wind, may affect the normal operation.

These traps have only one moving part and offer a wide operating range, without adjustment. Connections are female screwed or flanged.

MAIN FEATURES

Intermittent discharge.

Standard insulation cover

Operates on superheated steam.

The seat and disc can be easily replaced in field without removing the trap from the line.

Unaffected by water hammer and vibrations Built-in easy-to-clean strainer.

OPTIONS:	Blowdown valve
USE:	Saturated and superheated steam.
AVAILABLE
MODELS:	DT 46
SIZES:	DN ½” to DN 1” – DN15 to DN25
CONNECTIONS:	Female screwed ISO7/1 Rp (BS21)
CONNECTIONS:	Flanged EN1092-1 PN40-PN100 or ANSI
INSTALLATION:	Horizontal installation recommended.
APPLICATION	Can be installed in any position.
LIMITS:	Min. working pressure – 1,5 bar
LIMITS:	Max.working back pressure – 80%

BODY LIMITING CONDITIONS

FLANGED PN 40 / ANSI 300 *	FLANGED ANSI 150 **	FLANGED PN 63 *	FLANGED PN 100 *	FLANGED ANSI 600# **	RELATED TEMP.
ALLOW. PRES.	ALLOW. PRES.	ALLOW. PRES.	ALLOW. PRES.	ALLOW. PRES.	RELATED TEMP.
40 bar	17,3 bar	63 bar	100 bar	90,5 bar	50 ºC
37,1 bar	15,4 bar	58,5 bar	92,8 bar	80,2 bar	100 ºC
33,3 bar	13,8 bar	52,5 bar	83,3 bar	72 bar	200 ºC
27,6 bar	10,2 bar	43,5 bar	69 bar	59,7 bar	300 ºC
23,8 bar	6,5 bar	37,5 bar	59,5 bar	51,4 bar	400 ºC
PMO - Max. Operating pressure		46bar	TMO - Max. Operating temperature		400 ºc
* According to EN1092-1:2007 ;			** Acc. to EN1759-1:2004

Body limiting conditions PN100 or below , depending on the type of connection adopted. Rating PN100 for thread, SW and BW.

MATERIALS

POS.Nr.	DESIGNATION	MATERIAL
1	Body	P250GH / 1.0460
2	Cover	AISI 304 / 1.4301
3	*Gasket	StainlessSt./Graphite
4	*Seat	Hardened St.Steel
5	*Valve disc	Hardened St.Steel
6	*Bimetal ring	Bimetal
7	*Washer support	AISI 304 / 1.4301
8	*Tube	AISI 304 / 1.4301
9	*Strainer screen	AISI 304 / 1.4301
10	*Gasket	StainlessSt./Graphite
11	Plug	A105 / 1.0432
12	Insulation cover	AISI 304 / 1.4301

*Available spare parts.

DIMENSIONS (mm)

Screwed and SW *						EN PN16/PN40		EN PN63		ANSI 150		ANSI 300
SIZE DN	A	B	C	D	WGT. Kgs	E	WGT. Kgs	E	WGT. Kgs	E	WGT. Kgs	E	WGT. Kgs
15-1/2"	95	60	50	109	1,3	150	2,8	150	3,7	150	3,9	150	4,9
20-3/4"	95	60	50	109	1,2	150	3,3	150	5,2	150	4,8	150	7
25-1"	95	66	50	115	1,5	160	4,1	160	6,7	160	6,5	160	8,5

* BW (butt weld) on request.

进口圆盘式疏水阀品牌

德国托马斯阀门集团于1933年创建于德国鲁尔工业区，也是世界最重要的工业区。位于德国西部、莱茵河下游支流鲁尔河与利珀河之间的地区。德国托马斯阀门集团是以生产高品质、先进的阀门、测量及控制系统而享誉全球的跨国性生产企业。采用世界先进的设备及生产工艺，所有产品都在严格的质量体系监控下完成作业。并在各大洲几十个国家拥有子公司及分支机构。
