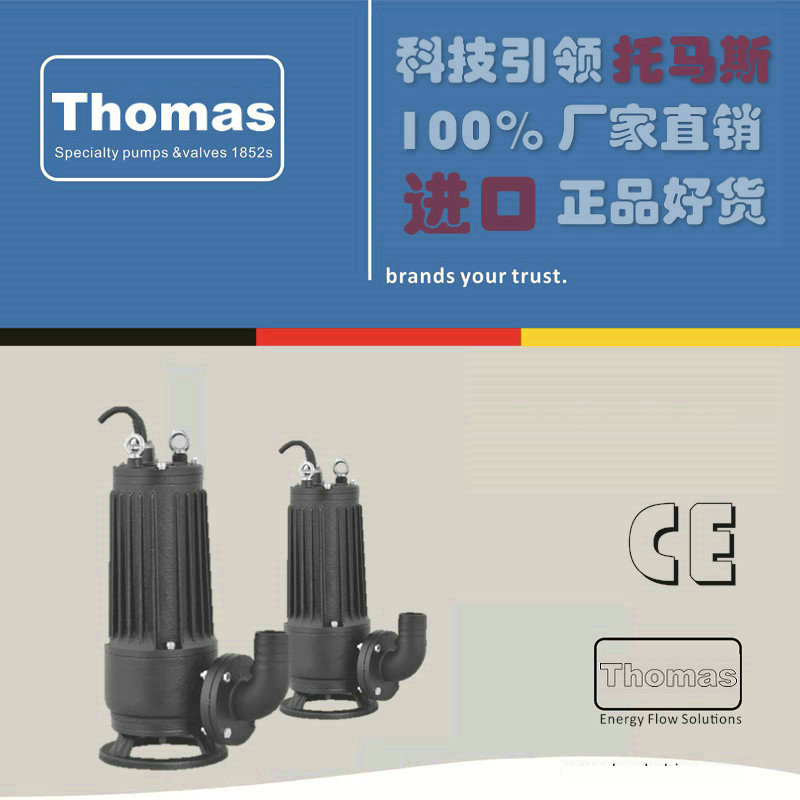

该污水泵主要由轴、轴承架、泵盖、叶轮、泵座、电机支架、电机等部件组成。泵为立式单级单吸泵，叶轮采用双流道结构，能有效通过泵口径5倍的纤维物质及直径为口径50%的固体颗粒。
Vertical sewage pump can be moved, can also be fixed installation, for the construction, farmland irrigation and drainage, enterprises and enterprises in the process of sewage pumping and delivery. In addition to the application of sewage, but also for drainage pumps, pulp pumps, irrigation and so on.
The scope of application
1, the factory business serious pollution of wastewater discharge;
2, the main residential area sewage sewage station
3, urban sewage treatment plant dispatch system;
4, civil air defense system drainage station;
5, water plant water supply equipment, hospitals, hotels, sewage discharge
6, municipal engineering construction site, mine supporting machine, rural biogas digesters, farmland irrigation and other industries.
7, conveyor belt particles of sewage, dirt, can also be used for water and with weak corrosive media.
Product composition
The sewage pump mainly by the shaft, bearing frame, pump cover, impeller, pump seat, motor bracket, motor and other components. Pump is a vertical single-stage single-suction pump, the impeller with double flow structure, can effectively pass the pump diameter 5 times the fiber material and diameter of 50% of the solid particles.
Features
1, safe and reliable, reduce maintenance costs: the balance of the rotor parts and a reasonable adjustment of the balance of the pump effectively balance the radial force and axial force to ensure that the unit can be long-term stable operation, and has a small vibration, Low noise
2, over-current ability: smooth large channel, a special impeller anti-blocking design to ensure that the pump running efficient and no clogging.
3, double seal, double protection: double machine in series configuration, the real double protection to ensure that the motor safety.
Working conditions
Flow rate: 2 ~ 1500 m 3 / h
Head range: 3 ~ 45m
Rated speed n: 970 ~ 2900r / min
Medium temperature: -15 ℃ ~ +60 ℃
Medium density: ≤ 1.3 × 10 3 kg / m 3
Media PH value: 5 ~ 9
System maximum working pressure: ≤ 0.6Mpa
