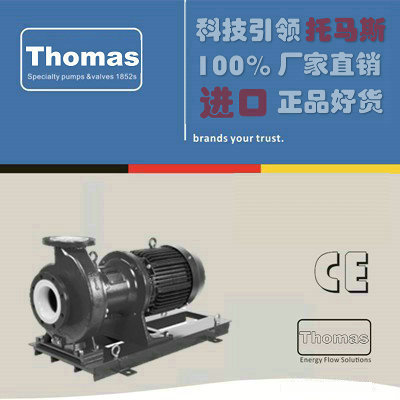

进口衬氟离心泵原理特点及品牌（图）

进口衬氟离心泵是按国际标准设计并结合非金属泵的加工工艺设计生产的，该泵具有耐腐、耐磨、耐高温、不老化、机械强度高、无毒素分解、使用温度宽（输送介质温度为-85℃-200℃）等优点。

产品特点

德国托马斯(Thomas)衬氟离心泵按国际标准设计,泵体采用金属外壳内衬聚全氟乙丙烯(F46)，泵盖、叶轮和轴套均用金属嵌件外包氟塑料整体烧结压制成型,轴封采用外装式波纹管机械密封，静环选用99.9%(氧化铝陶瓷或氮化硅)，动环采用四氟填充材料。其特点是耐腐耐磨密封性能优越可靠。

产品用途

本泵适用于输送任何浓度的硫酸、盐酸、醋酸、氢氟酸、硝酸、王水、强碱、强氧化剂、有机溶剂、还原剂等苛刻条件的强腐蚀性介质，是目前世界上最新耐腐蚀装备之一。它的最大优点是结构先进合理、耐强腐蚀、密封性能严密可靠、工作稳定、噪声低、使用寿命长。

技术参数

流量：6.3～400m3/h

扬程：5～132m

转速：2900、1450r/min

功率：0.55～110KW

进口直径：50～200mm

最高工作压力：1.6Mpa

The centrifugal pump is designed and manufactured according to the international standard design and combined with non-metallic pump. The pump has the advantages of decay resistance, abrasion resistance, high temperature resistance, no aging, high mechanical strength, no toxin decomposition, wide use temperature (conveying medium Temperature of -85 ℃ -200 ℃) and so on.

Features

Germany Thomas lining centrifugal pump designed according to international standards, the pump body with metal shell lined with perfluoro-propylene propylene (F46), pump cover, impeller and sleeve are covered with metal insert fluorine plastic overall sintering compression molding , Shaft seal with exterior bellows mechanical seal, static ring selection of 99.9% (alumina ceramic or silicon nitride), dynamic ring using PTFE fill material. Which is characterized by corrosion-resistant and wear-resistant sealing performance is superior and reliable.

Product Usage

The pump is suitable for conveying any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, strong oxidants, organic solvents, reducing agents and other harsh conditions of strong corrosive media, is the world's latest corrosion One of the equipment. Its biggest advantage is the structure of advanced and reasonable, strong corrosion resistance, tight sealing performance reliable, stable, low noise, long service life.

Technical Parameters

Flow: 6.3 ~ 400m3 / h

Head: 5 ~ 132m

Speed: 2900,1450r / min

Power: 0.55 ~ 110KW

Import diameter: 50 ~ 200mm
